How to ‘Pixel’ Leads Directly From Your Opt-In Forms

We recently added a small but significant feature to Thrive Leads, that will take your Facebook retargeting to the next level.

With our latest custom HTML feature upgrade, you can add Facebook pixels directly to the states of your opt-in forms to track your visitors’ actions. From now on, this means you can retarget your leads on Facebook even if you don’t use a thank you page.

Check out the video above or read this article to learn how this feature can make a real difference if you’re using Facebook retargeting pixels.

More...

Disclaimer:

This video isn’t a beginner's guide to Facebook pixels. We assume that you are already familiar with the basics, and the full Facebook pixel code is already installed in your website’s header. If you are new to pixels, here you’ll find all the info you need to you start your first Facebook ad.

About the New ‘Choose the Moment’ Feature

To start off, you need to create a Thrive Leads opt-in form with multiple states.

Having multiple states is necessary, because that’s where you’ll insert different Facebook pixels inside an HTML element.

When adding an HTML element to your page, you can now specify when the code snippet should be loaded:

  • On page load
  • When the visitor views the state
insert custom html  element

The new 'When the visitor views the state' option

The ‘on page load’ option is self-explanatory. When someone visits the page, the code snippet will be executed immediately.

With the ‘when the visitor views the state’ option, you can postpone running your code snippet for when the visitor has engaged with your opt-in and reached another state. When you use this option to trigger a Facebook retargeting pixel, it will allow you to create more personalized ads based on how your audience interacted with your opt-in forms.

If you want to learn more about when to load an HTML code, read this Thrive Knowledge Base article.

How to add a lead pixel to your opt-in form?

Adding a Facebook pixel to your opt-in form is a 2-minute process, after which you can retarget your audience in a much more granular way. Let’s go through the steps together:

1. Add a new form to your website with Thrive Leads (you can also use an existing form if you already have one)

2. Pick a template (multiple choice form)

3. Click on ‘add a new state’

Add a new state to your opt-in form

Add a new state to your opt-in form

4. Design your Thank You State

design thank you state

Design your 'thank you' state as you like

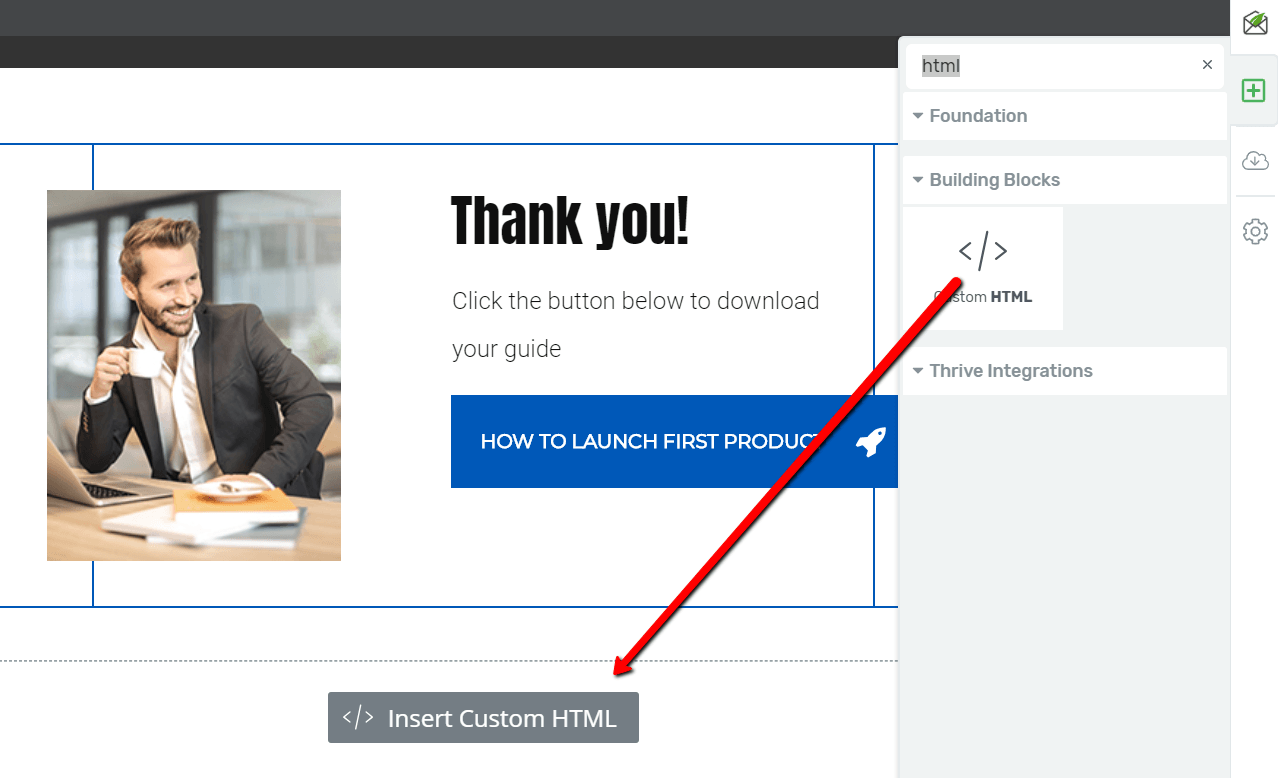

5. Drag a custom HTML element on to the new ‘thank you’ state

insert custom HTML

Drag the 'custom HTML' element on your opt-in form

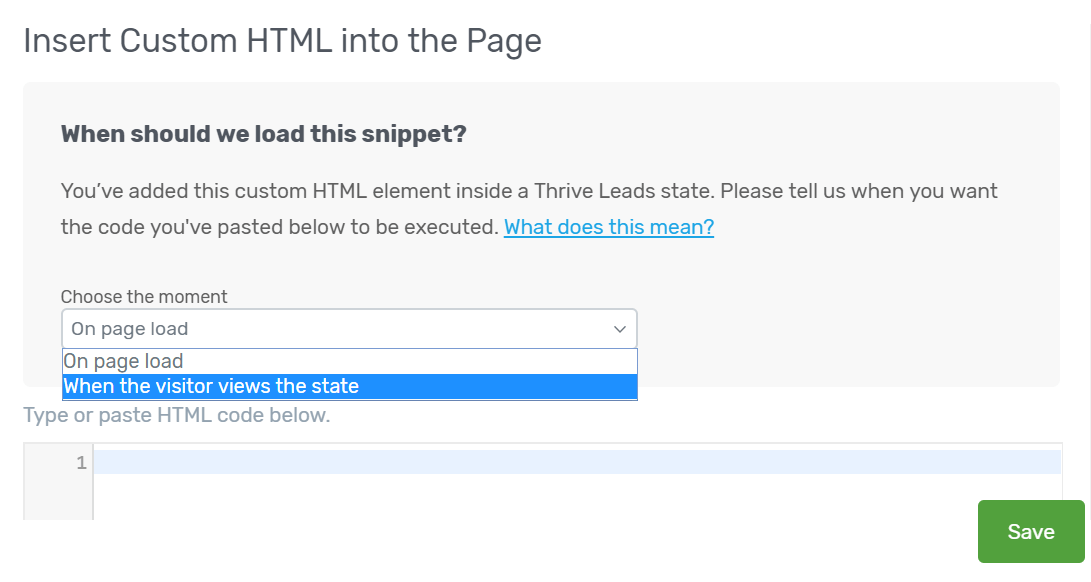

6. Specify when to load the code snippet: When the visitor views the state

When the visitor views the state

Select: 'When the visitor views the state'

7. Collect the ‘Lead Pixel’ from your Facebook Event Manager

8. Add the Facebook pixel to the custom HTML element

9. Add a custom parameter to your snippet. This will help you identify your leads.

Once all your states are ready, connect your opt-in forms to the correct thank you state. You can do this by picking an opt-in state, clicking to the ‘connect your form to service’ button, go through the connection steps you see there, and then in the ‘post signup action’, select the corresponding thank you state for your opt-ins.

The Structure of Your Multiple Choice Opt-On Form

The default form has two options: ‘Launching my first product’, and ‘finding my business idea’.

default form

The default form

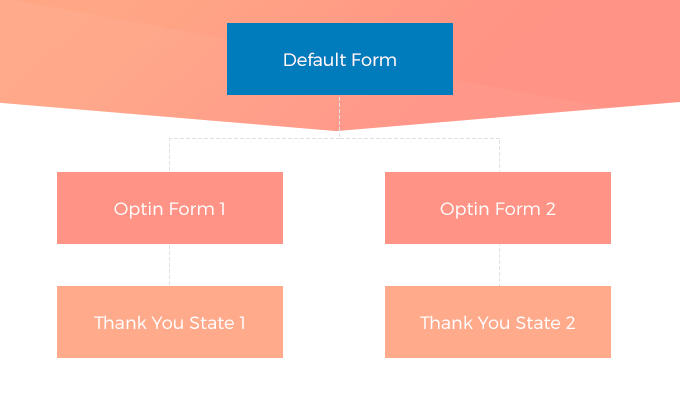

Visitors can pick which suits them better, then each of the buttons leads through to an opt-in form (State 1-2) where visitors can enter their email. Each of these leads to a thank you state (State 3-4), where you place the HTML elements with the Facebook Lead Pixels. Here’s a diagram illustrating this simple lead gen funnel:

facebook pixel lead generation

The structure of our multiple choice funnel

This strategy enables us to retarget the people who have signed up.

Read this article if you want to know more about switching states in a multiple choice opt-in form.

Track Your Pixel

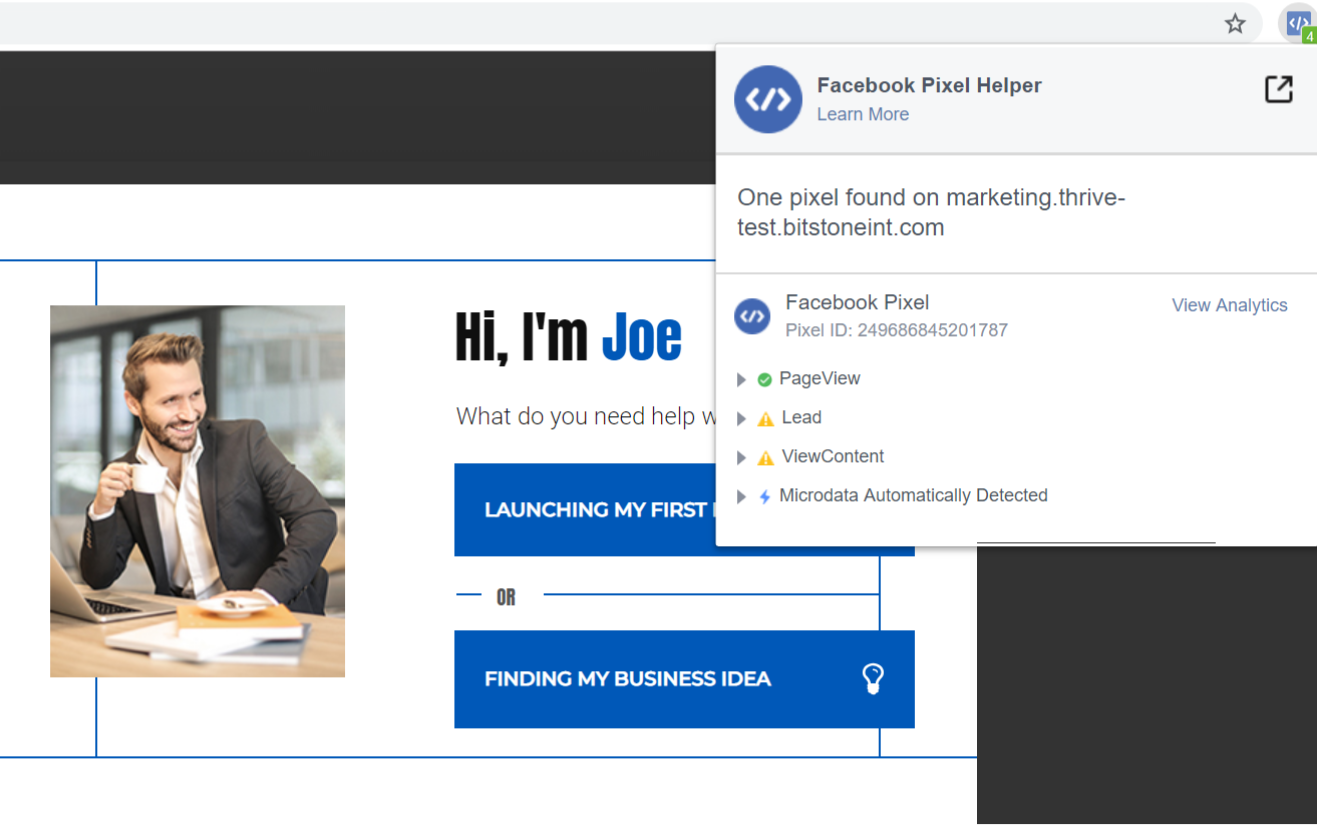

To check if Facebook pixels are set up correctly, install the Facebook Pixel Helper Chrome extension. This tool detects the pixels on a page, and tells you if they’re working correctly.

Facebook Pixel Helper extension

The Facebook Pixel Helper extension

Note, that since we have selected the ‘when the visitor views the state’ option within the custom HTML element, the lead pixel will be detected, but not activated upon when visitors view the page. The pixel will only be activated if your visitors reach the ‘thank you’ state of your opt-in form.

Pro Tip

The more specific you are with your segmentation, the better your campaigns will perform.


Therefore, it’s beneficial to “pixel” people who were interested in your offer, but did not sign up. Then, you can show a different type of ad or a more informative landing page to this segment.


To track this segment with pixels, you’ll need to copy a view content’ pixel from your Facebook Event Manager and add one to the 1st and the 2nd opt-in form for each. This way, you target people who clicked through one of the buttons, viewed the opt-in state, but then didn't take any actions.

It’s Time to Refine Your Targeting Like a Pro

The Facebook Pixel is a powerful marketing tool in your hands that can help you track conversions, optimize ads, build targeted audiences, and remarket your readers.

Our latest custom HTML element upgrade provides an elegant conversion tracking option to use with Facebook Pixels. This opens up a lot of fun lead generation opportunities and enables you to laser focus on your segments.

Do you like this new feature? How are you going to use it in your business?

If you have questions don’t hesitate to leave a comment below.

Author: Andrea Papp

Andrea is the SEO and PPC manager of Thrive Themes. Besides diving into data, she is also passionate about sports and healthy living. When she’s away from her computer, she’s probably at a local CrossFit gym or yoga studio, lifting weights or practicing handstands.
